A termékről
| Dimensions | 140 x 100 x 42 mm (L x W x H) |
| Weight | 280 g |
| Power |
12 to 24 VDC - Average power consumption < 2 W |
| GPS receiver | - |
| Electrical interfaces |

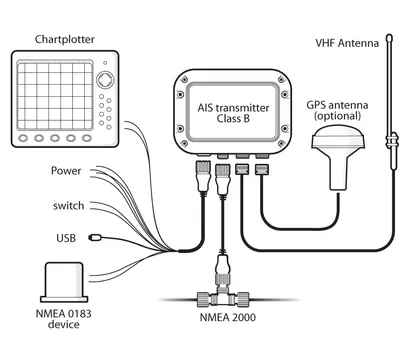

NMEA 0183, 38400 Baud (output), NMEA 0183 4800 Baud (input) - USB - NMEA 2000® |
| Supplied with |
2m power, USB and NMEA 0183 cable - CD with USB drivers - User manual and quick start guide - Fixing screws. |
| VHF receiver | Receiver 1 frequency : 161.975 MHz - Receiver 2 frequency : 162.025 MHz - Channel bandwidth : 25 KHz - Rx sensitivity < -107 dBm |
| VHF transmitter | - |
| Performance | - |
| User interface | 2 LED indicators for power and AIS message reception |
| Operating temperature | -25°C to +55°C |
| Waterproofness | IPX7. Complies with the IEC 60945 standards |
