Plastimo alkatrészek
Roll-reff T széria alkatrészek
3150 Ft-tól
Az ár az áfát tartalmazza.
1
CikkszámPL-RR10001
KategóriaPlastimo alkatrészek
A termékről

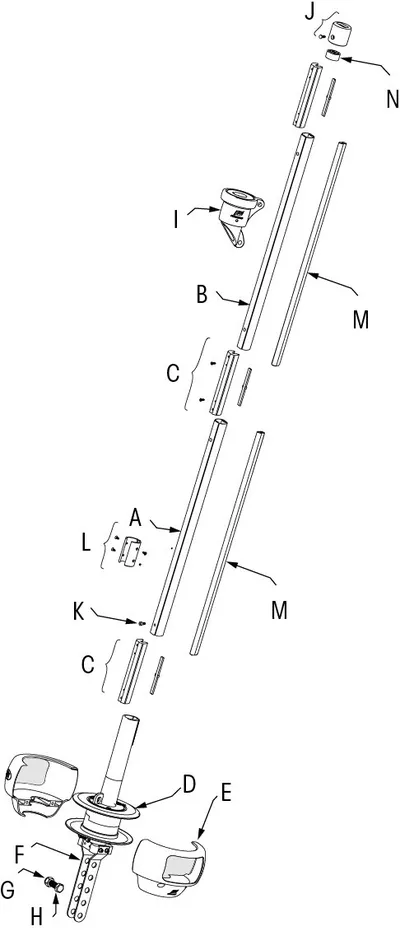

| Ref. | Photo | Layout | Name | Description |
| 25184 |
|
A | Lower alloy spar for T models | For 406T, 609T, 811T 2.15 m spar, Ø 31 mm |
| 26902 |
|
B +C | Additional spar pacckage for T models | For 406T, 608T, 810T 1 alloy spar 2.15 m + 1 plastic quick-coupling sleeve with screws |
| 55980 |
|
C | 7 plastic quick-coupling sleeves + screws | For 406T, 608T, 810T |
| 10001 |
|
D | Drum 406T | |
| 58244 |
|
D | Drum 609T | |
| 58249 |
|
D | Drum 811T | |
| 62353 |
|
E | Halyard feeder + tensioner for 406 drum | |
| 58245 |
|
E | Half cheek for 609 drum | |
| 58250 |
|
E | Half cheek for 811 | |
| 26325 |
|
F | Coupling plates for 406 (5holes) | 2 x 5-hole plates |
| 21308 |
|
F | Coupling plates for 406 (11 holes) | 2 x 11-hole plates |
| 21291 |
|
F | Coupling plates for 608 (5 holes) | 2 x 5-hole plates |
| 21295 |
|
F | Coupling plates for 608 (11 holes) | 2 x 11-hole plates |
| 22850 |
|
F | Coupling plates for 810 and 910 (5 holes) | 2 x 5-hole plates |
| 55976 |
|
G +H +K | Set of fastening screws for T models | Set of fastening screws common to 609T and 811T models |
| 17067 |
|
I | Halyard swivel for 406 | |
| 58248 |
|
I | Halyard swivel for 608, 609, 810 and 811 | |
| 55978 |
|
L + J | Accessories for T models | Top spar cap + screw |
| 17065 |
|
- | Plastic sliders | Bag of 10 plastic sliders |
